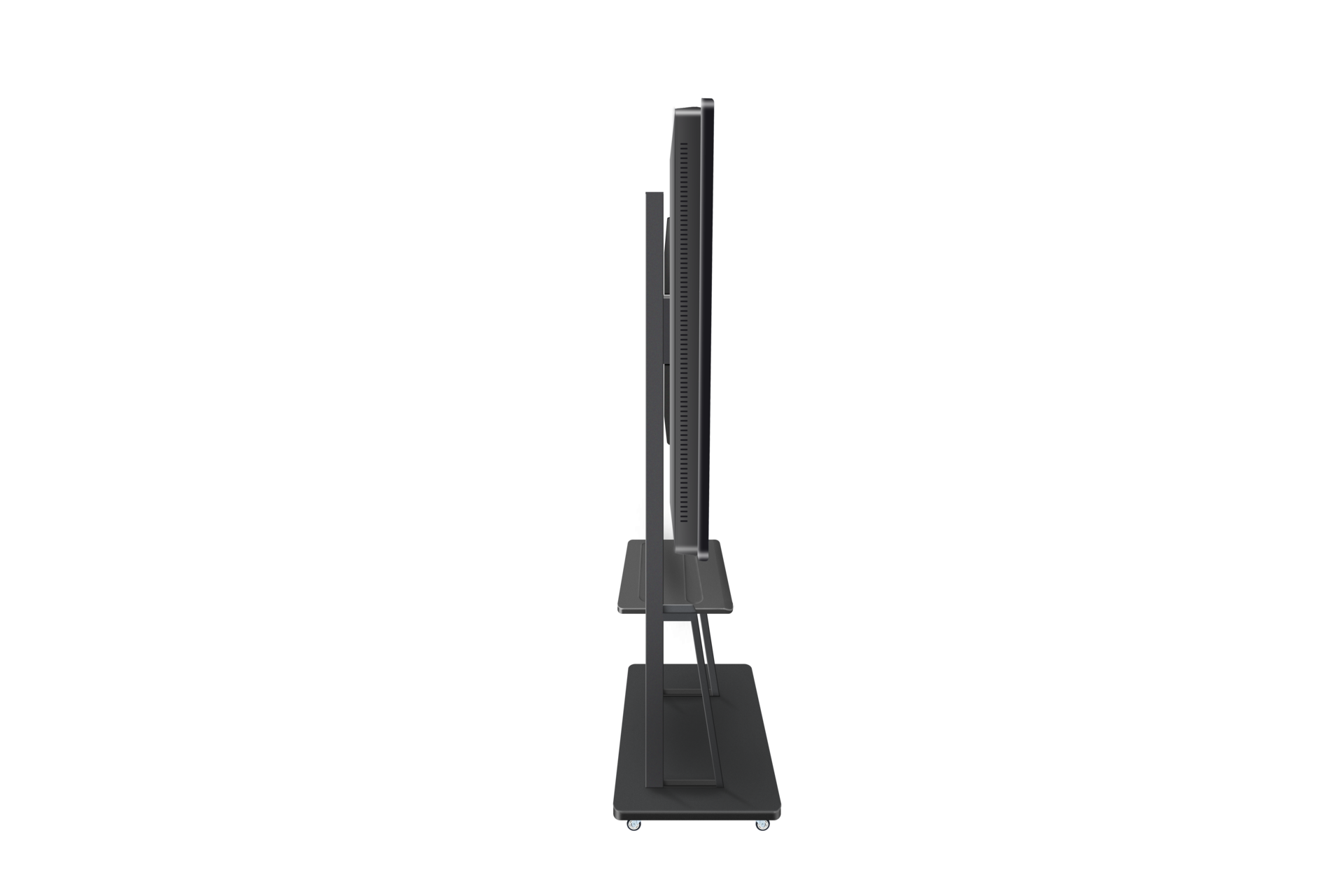

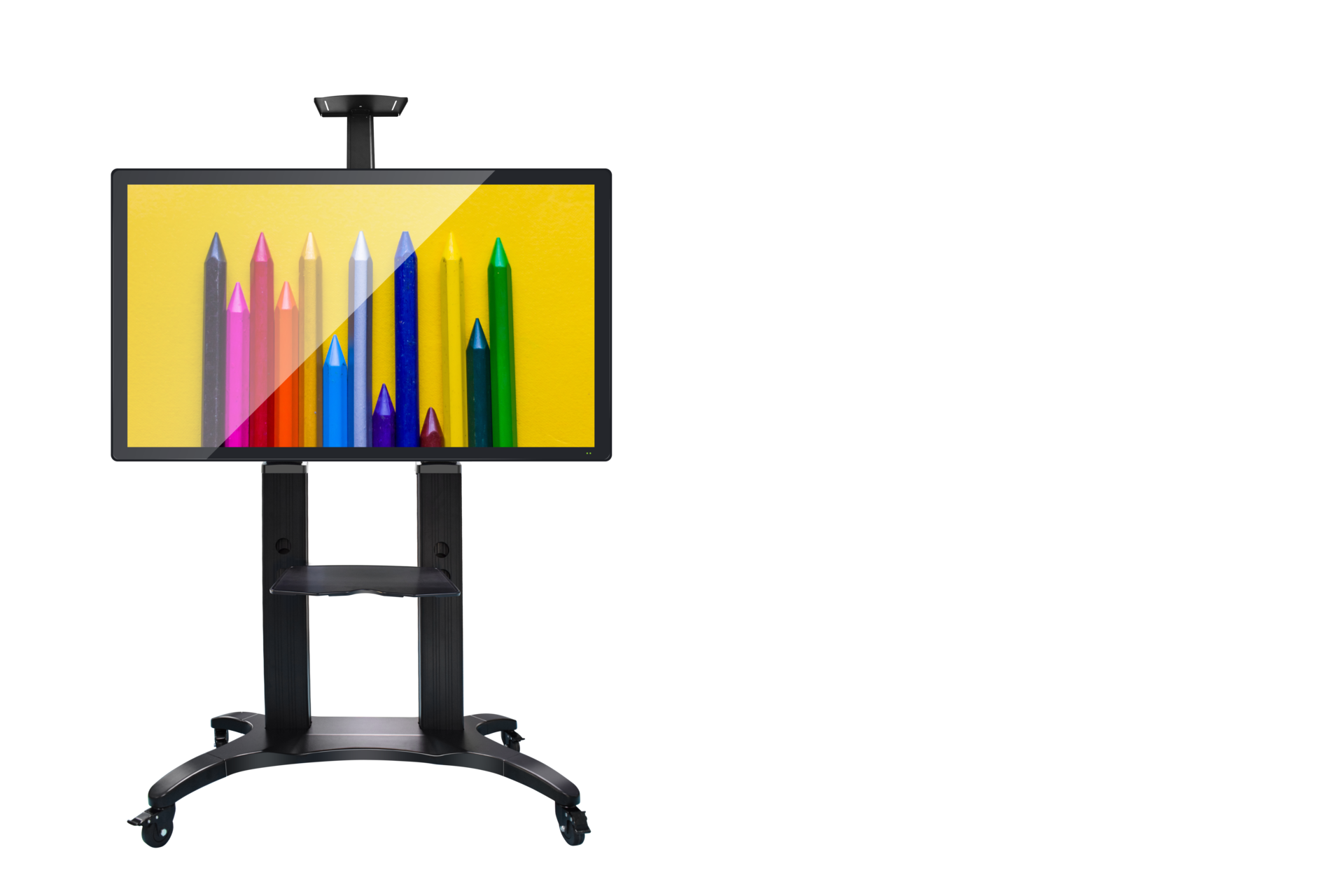

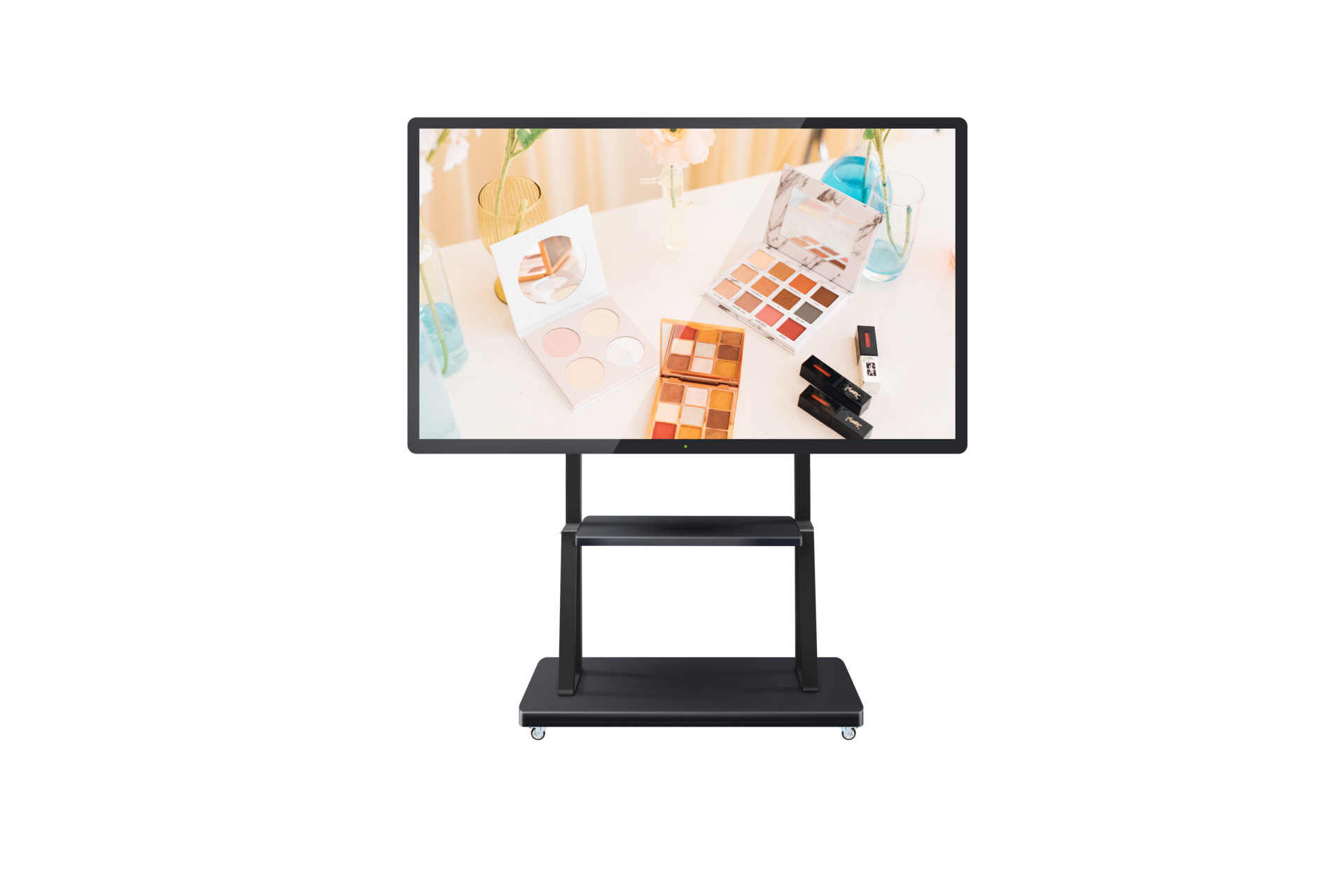

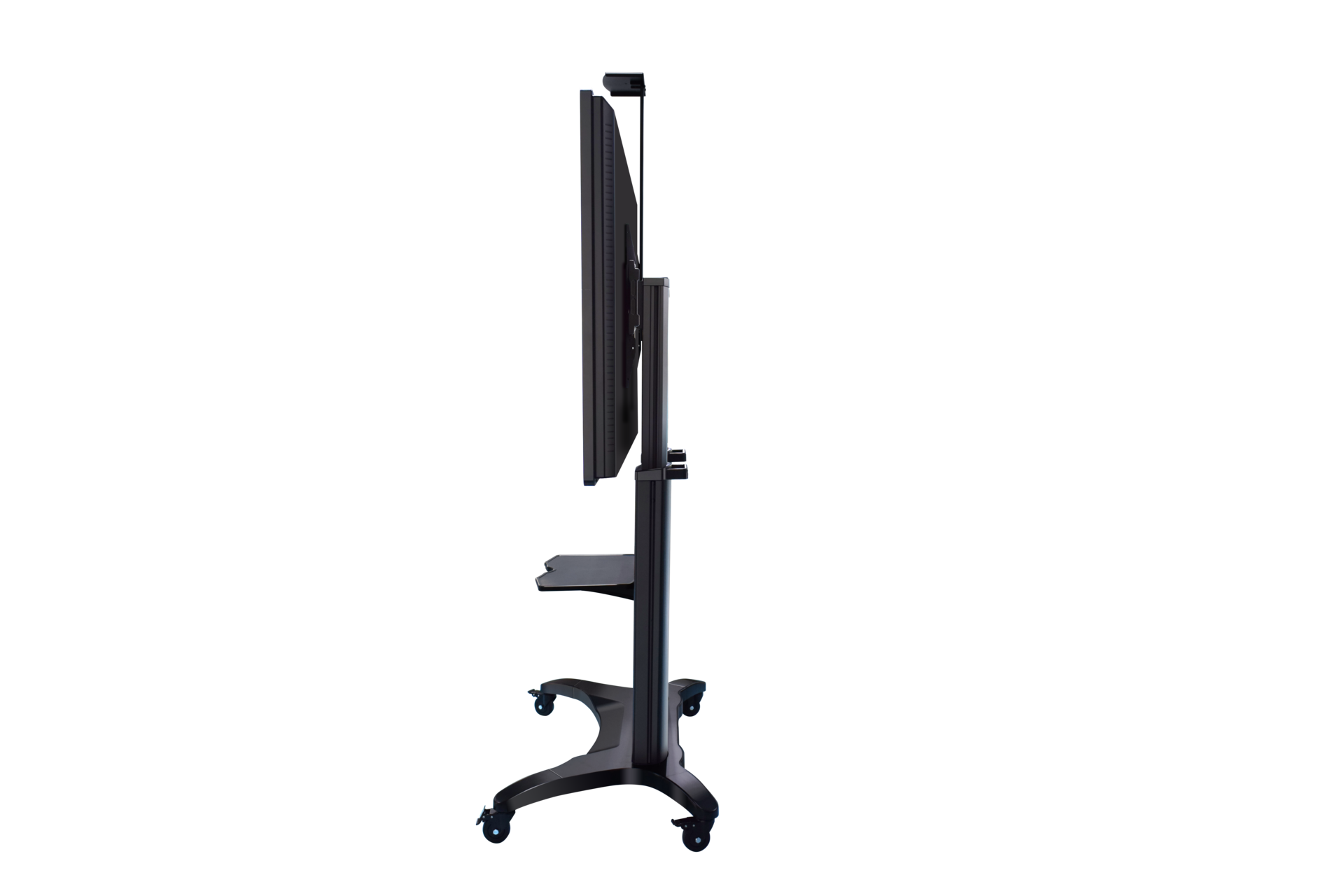

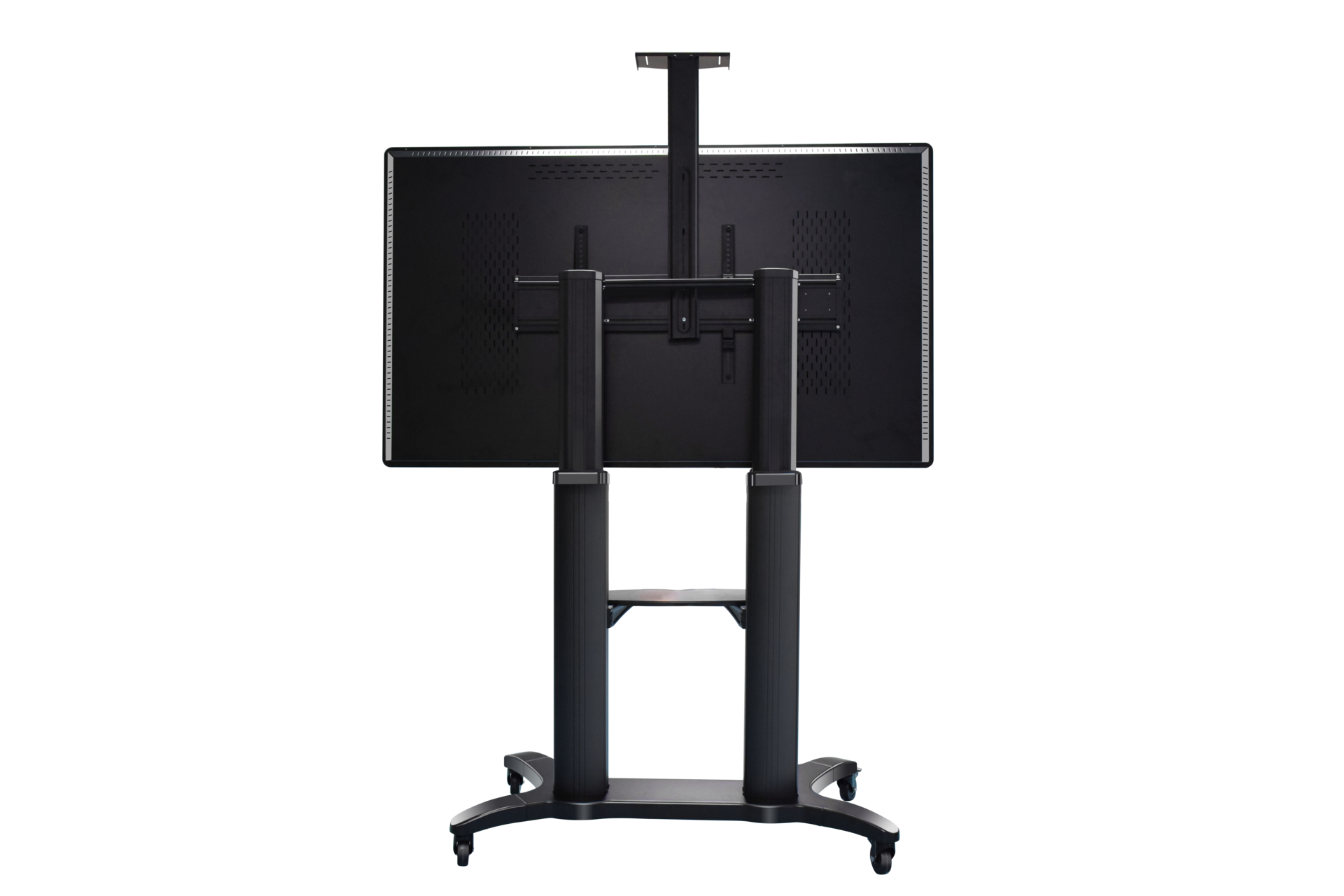

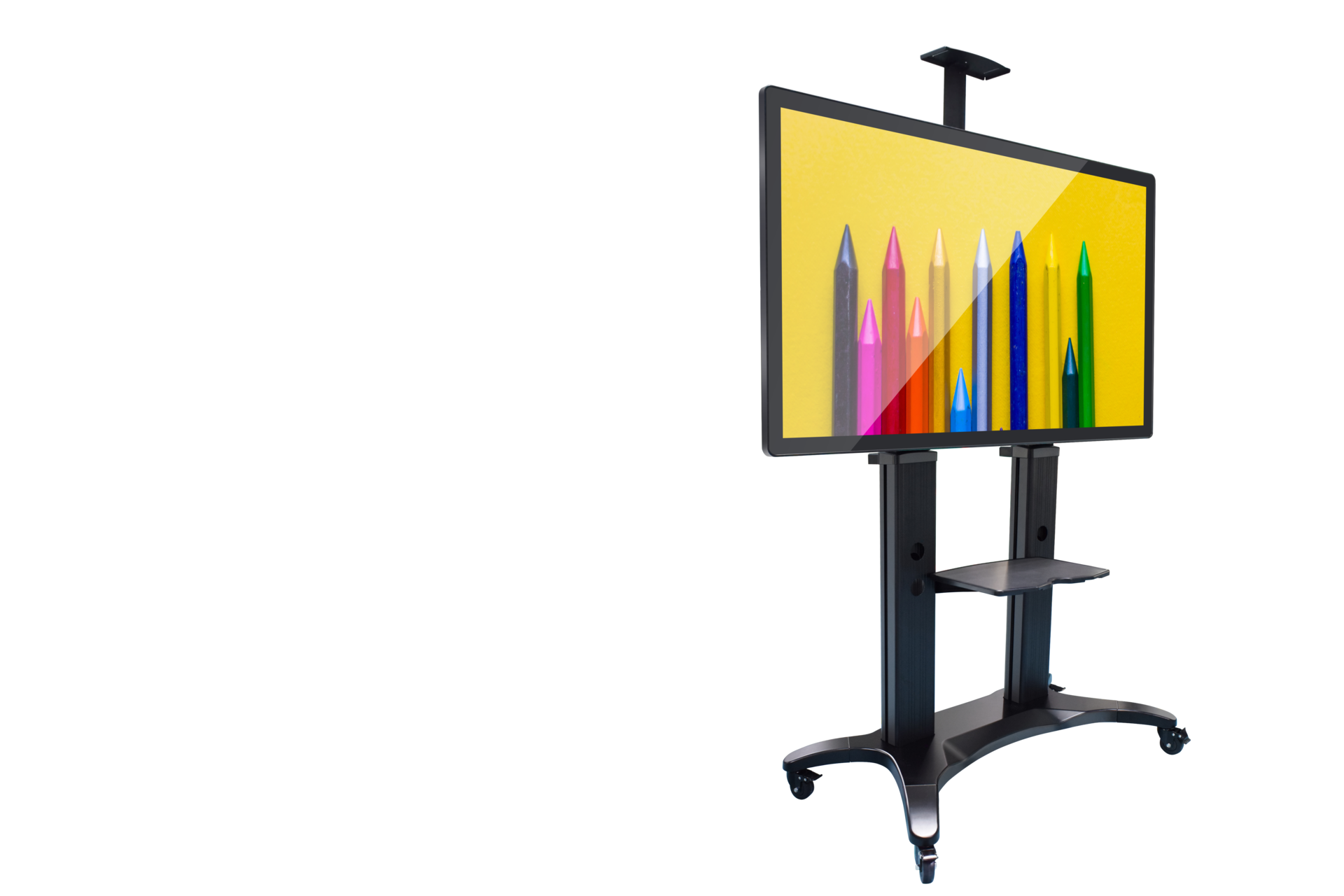

CLEARBOOK-A100

Conference and Meetingroom Solution

Description

The Indoor E-white board, normally be used in education, corporate meeting room and so on. Cart for option, is very convenient to move. The big screen high resolution and sensitive touch function, will bring the good user experince.
Our e-Board interactive whiteboards, fitted with easy-to-operate multi-touch technology. Touch recognition means you can operate the e-Board Touch using a stylus, your finger or the palm of your hand. The e-Board Touch is an extension of your desktop or laptop which can be used to create an interactive environment, whether in a classroom or a meeting room.

Features

Dual operation system Android + Windows
Sensitive multi-touch screen
Electronic interactive whiteboard function
Multiple floor mounting supports are optional

Reference Dimension

75″:1750*1030*85mm(L*W*D)
86″:1970*1155*95mm(L*W*D)

Operating enviroment	Indoor Clearbook	Specifications
Indoor	PANEL	Display	55"	65"	75"	86"	98"
		Screen Size	55"	65"	75"	86"	98"
		Panel Technology	IPS,M+(WRGB)	IPS,M+(WRGB)	IPS,M+F4	IPS,M+F4	IPS,M+F4
		Back light type	DIRECT	WLED	WLED	WLED	WLED
		Asper Ratio	16:09	16:09	16:09	16:09	16:09
		Native resdution	3840*2160	3840*2160	3840*2160	3840*2160	3840*2160
		Brightness	350nits	350nits	350nits	350nits	350nits
		contrast Ratio	1200:1	1200:1	1200:1	1200:1	1200:1
		Dynamic CR	CR≥10	CR≥10	CR≥10	CR≥10	CR≥10
		Viewing Angle(H*V)	178*178	178*178	178*178	178*178	178*178
		Response time	6ms	8ms	8ms	8ms	8ms
		Surface Treatment(Haze.Quater Wave plate)	Haze 3%, QWP	(Haze 3%)，Hard coating (2H)	(Haze 3%)，Hard coating (2H)	(Haze 3%)，Hard coating (2H)	(Haze 3%)，Hard coating (2H)
		Life Time(Type)	50,000 h - 60000 h	50,000 h - 60000 h	50,000 h - 60000 h	50,000 h - 60000 h	50,000 h - 60000 h
		Operation Hours	24h	24h	24h	24h	24h
		Orientation	Portrait & Landscape	Portrait & Landscape	Portrait & Landscape	Portrait & Landscape	Portrait & Landscape
	Connectivity	Input	HDMI(2), DP, HDBaseT, USB(2)，RS232	HDMI(2), DP, HDBaseT, USB(2)，RS232	HDMI(2), DP, HDBaseT, USB(2)RS232	HDMI(2), DP, HDBaseT, USB(2)RS232	HDMI(2), DP, HDBaseT, USB(2)RS232
		Output	External Speaker Out(L/R)	External Speaker Out(L/R)	External Speaker Out(L/R)	External Speaker Out(L/R)	External Speaker Out(L/R)
		External Control	RS232C In/Out, RJ45(LAN) In/Out	RS232C In/Out, RJ45(LAN) In/Out	RS232C In/Out, RJ45(LAN) In/Out	RS232C In/Out, RJ45(LAN) In/Out	RS232C In/Out, RJ45(LAN) In/Out
	PHYSICAL SPECIFICATION	Protection Glass	5mm(IK 10, Degree of Protection, Tempered,Anti-Reflective)	5mm(IK 10, Degree of Protection, Tempered,Anti-Reflective)	5mm(IK 10, Degree of Protection, Tempered,Anti-Reflective)	5mm(IK 10, Degree of Protection, Tempered,Anti-Reflective)	5mm(IK 10, Degree of Protection, Tempered,Anti-Reflective)
	PHYSICAL SPECIFICATION	Bezel Color	Black/Silver	Black/Silver	Black/Silver	Black/Silver	Black/Silver
	KEY FEATURE	NO system with HDMI input Optional Android or windows system
	ENVIRONMENT CONDITIONS	Operation Temperature	0°C to 40 °C	0°C to 40 °C	0°C to 40 °C	0°C to 40 °C	0°C to 40 °C
	ENVIRONMENT CONDITIONS	Operation Humidity	.-10°C to 80 °C RH Non-condesing	.-10°C to 80 °C RH Non-condesing	.-10°C to 80 °C RH Non-condesing	.-10°C to 80 °C RH Non-condesing	.-10°C to 80 °C RH Non-condesing
	POWER	Power Supply	100-240V~, 50/60Hz	100-240V~, 50/60Hz	100-240V~, 50/60Hz	100-240V~, 50/60Hz	100-240V~, 50/60Hz
	POWER	Power Type	Built-In Power	Built-In Power	Built-In Power	Built-In Power	Built-In Power
	POWER CONSUMPTION	Typ./Max.	69w/99w	83w/118w	224w/320w	174w/249w	504W/720W
	SOFTWARE COMPATIBILITY	SuperSign	Yes(CMS, Control)	Yes(CMS, Control)	Yes(CMS, Control)	Yes(CMS, Control)	Yes(CMS, Control)
	ACCESSORY	Basic	Remote Controller, Manual(EIG, IG , OM), Regulation Book, HDMI Cable , POWER CABLE
